Description

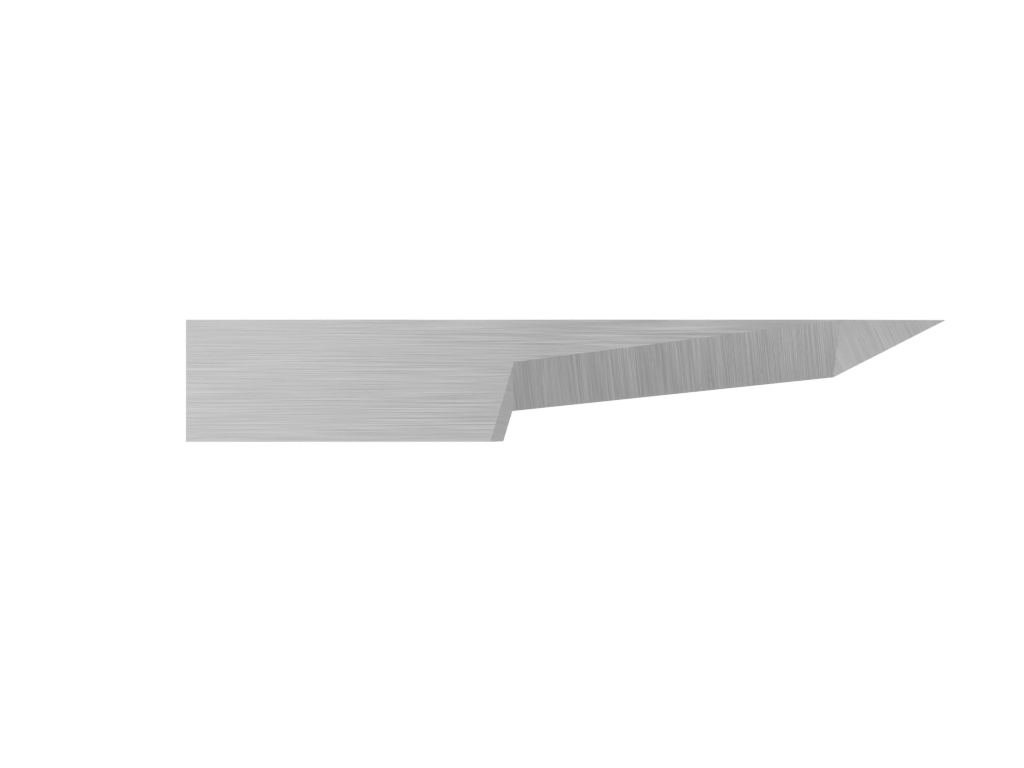

Blade for oscillate cutting of intricate detail and small radii. Provides for minimal overcut.
CS-K20
35,00 €
Blade for oscillate cutting of intricate detail and small radii. Provides for minimal overcut.
In stock
Additional information
Warning: Undefined array key “attribute_pa_routing-diameter” in /var/www/cuttersupplies.com/gammel/wp-content/themes/kiosko-child/functions.php on line 867
Warning: Undefined array key “attribute_pa_shank-diameter” in /var/www/cuttersupplies.com/gammel/wp-content/themes/kiosko-child/functions.php on line 873
| Machine Model | Colex, Gerber, IECHO, Kongsberg, Summa, Zund |
|---|---|
| Process Category | Knife blades |
| Process Type | Knife – Oscillate |
| Cut Angle | 63° + 84° |
| Max Material Thickness | 14.3 mm |
| Blade Thickness | 0.63 mm |
| Knife Type | Flat Stock |
| Start Overcut | '- mm |
| End Overcut | 1.2 mm |
| Board – Soft | Corrugated Plastic, Dispa®, F-Sorb®, Foam Board, Fome-Cor®, Insite® Foam Board, Matboard, Polycarbonate Sheet, Polyester Acoustic Board, Reboard®, Sandwich Board, Xanita® Board |
| Composite | Armid Dry Fiber, Dry Carbon Fiber, Dry Glass Fiber, Nomex® Dry Fiber, Prepreg Carbon Fiber, Prepreg Quartz, Prepreg Unidirectional Carbon Fiber, Toray® Prepreg Carbon Fiber |
| Corrugated Single | A Flute, B Flute, C Flute, D Flute, E Flute, F Flute, G Flute |
| Corrugated Double Wall | A/B Flute, B/C Flute, B/E Flute, E/B Flute, E/C Flute, E/E Flute, F/E Flute |
| Corrugated Triple Wall | E/B/E Flute |
| Flexible Material | Carpet, Cork, Ejection Rubber, Fiber Glass, Foam, Garlock®, Gasket Material, Insulation, Magnetic Foil, Magnum Magnetics, PTFE, Rubber |
| Folding Carton | Light (20pt), XL (32pt) |
| Leather | Leather Hide |
| Paper | Extra Heavy (114-140lbs), Heavy (93-100lbs) |
| Textile | Canvas, Felt, Polyester Coated, Polyester Textile, Polypropylene |
