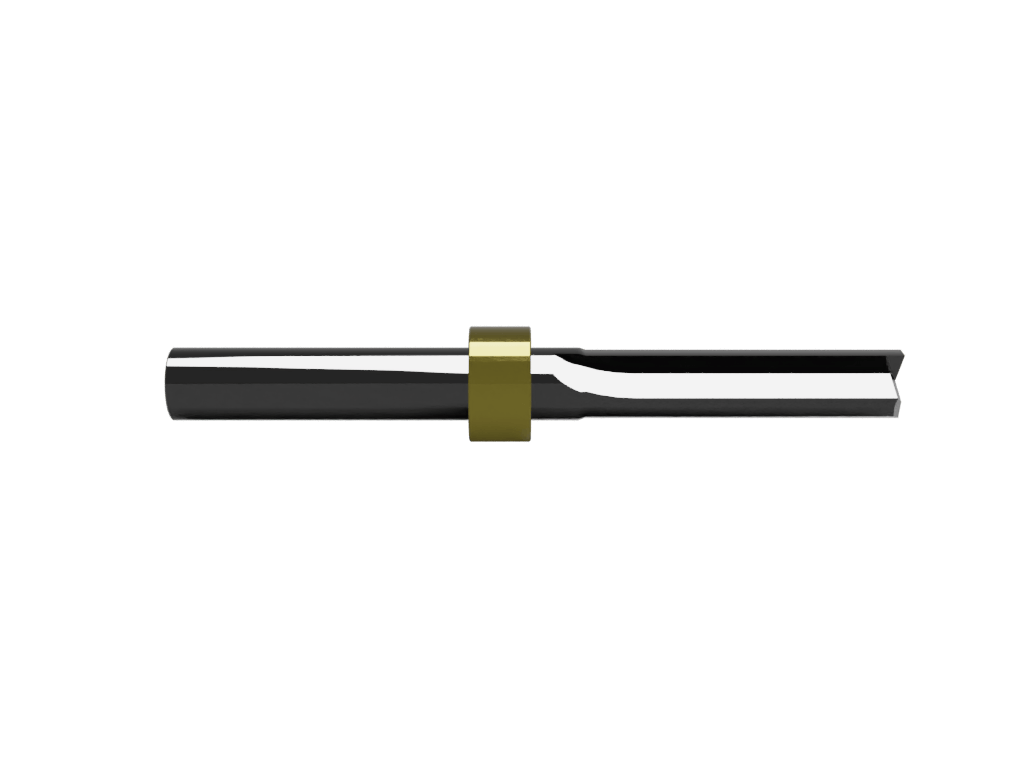

Router bit for extruded polystyrene such as Gatorplast, Ultraboard, Kappa with direct print or blank.. “Super” carbide, 2-flute, straight flute router bit with a 6mm cutting edge diameter and max milling depth of 25.4mm (1 inch). With stop ring (for use with the Zund ARC system and IECHO Tool Changer).
Router bit for extruded polystyrene such as Gatorplast, Ultraboard, Kappa with direct print or blank.. “Super” carbide, 2-flute, straight flute router bit with a 6mm cutting edge diameter and max milling depth of 25.4mm (1 inch). With stop ring (for use with the Zund ARC system and IECHO Tool Changer).
| Weight | 0,04375 kg |
|---|---|
| Dimensions | 2,6875 × 0,5 × 0,5 cm |
| Machine Model | IECHO, Zund |
| Process Category | Router bits |
| Process Type | Route – Through |
| Flutes | 2 Flutes |
| Cut Angle | Straight Cut |
| Routing Diameter | 6 mm |
| Max Cut Length | 26 |
| Max Rpm | 50000 |
| Shank Diameter | 6 mm |
| Length Overall | 60 |
| Board – Rigid | Gatorfoam®, Gatorplast®, HDU – High Density Urethane, Plaskolite®, Precision Board®, Sign Foam®, Ultra Board® |
