Description

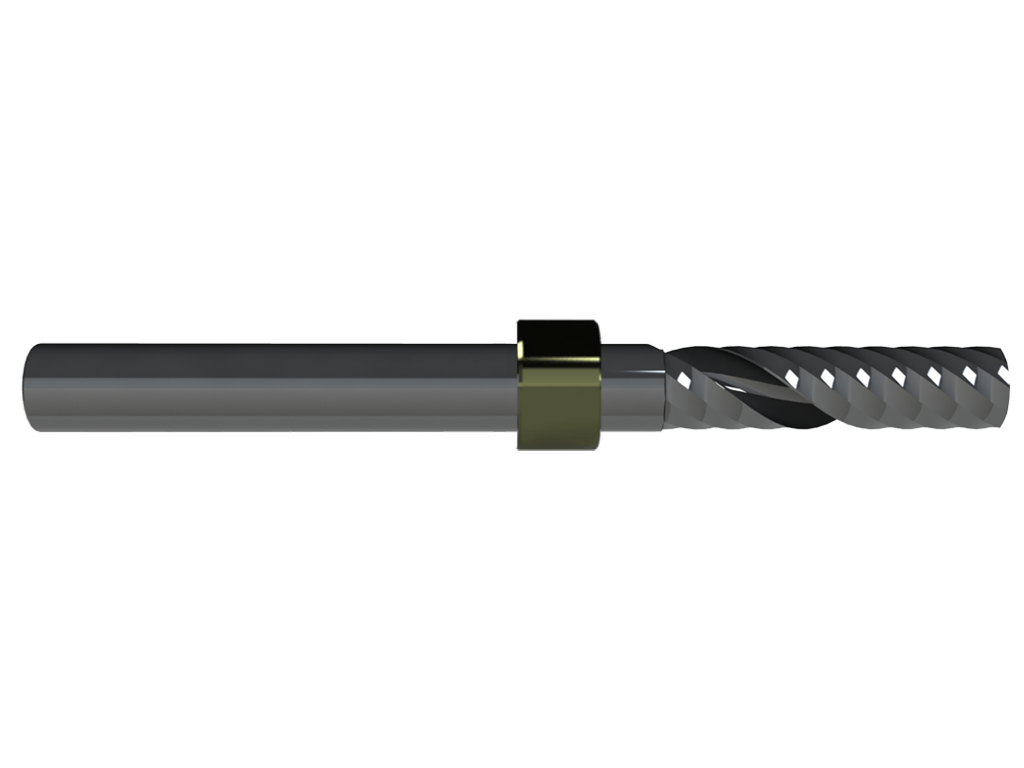

Multi-purpose, single O-flute, right-hand spiral (up cut) router bit with a 6mm cutting edge diameter, max milling depth of 28mm and a length overall of 75mm. With stop ring (for use with the Zund ARC system and IECHO Tool Changer).
CS-Ru117e-A
47,00 €
Multi-purpose, single O-flute, right-hand spiral (up cut) router bit with a 6mm cutting edge diameter, max milling depth of 28mm and a length overall of 75mm. With stop ring (for use with the Zund ARC system and IECHO Tool Changer).
Additional information
Warning: Undefined array key “attribute_pa_blade-thickness” in /var/www/cuttersupplies.com/gammel/wp-content/themes/kiosko-child/functions.php on line 849
Warning: Undefined array key “attribute_pa_end-overcut” in /var/www/cuttersupplies.com/gammel/wp-content/themes/kiosko-child/functions.php on line 855
Warning: Undefined array key “attribute_pa_max-material-thickness” in /var/www/cuttersupplies.com/gammel/wp-content/themes/kiosko-child/functions.php on line 861
Warning: Undefined array key “attribute_pa_start-overcut” in /var/www/cuttersupplies.com/gammel/wp-content/themes/kiosko-child/functions.php on line 879
| Machine Model | IECHO, Zund |
|---|---|
| Process Category | Router bits |
| Process Type | Route – Through |
| Flutes | 1 Flute |
| Cut Angle | Up Cut |
| Routing Diameter | 6 mm |
| Max Rpm | 50000 |
| Max Cut Length | 28 |
| Shank Diameter | 6 mm |
| Length Overall | 75 |
| Board – Rigid | Acrylic, Dibond®, E-Panel®, EVA – Ethylene Vinyl Acetate, Expanded PVC, Gatorfoam®, Gatorplast®, HDU – High Density Urethane, Komatex®, Max Metal®, Plaskolite®, Polycarbonate Board, Polyethylene 4 lbs., Sign Foam®, Sintra®, Ultra Board® |
| Metal | Aluminum, ChromaLuxe® HD Aluminum, Hard Brass |
| Wood | Birch Plywood, MDF, Poplar |
| Select Machine Manufacture | Zund, iECHO |
