Description

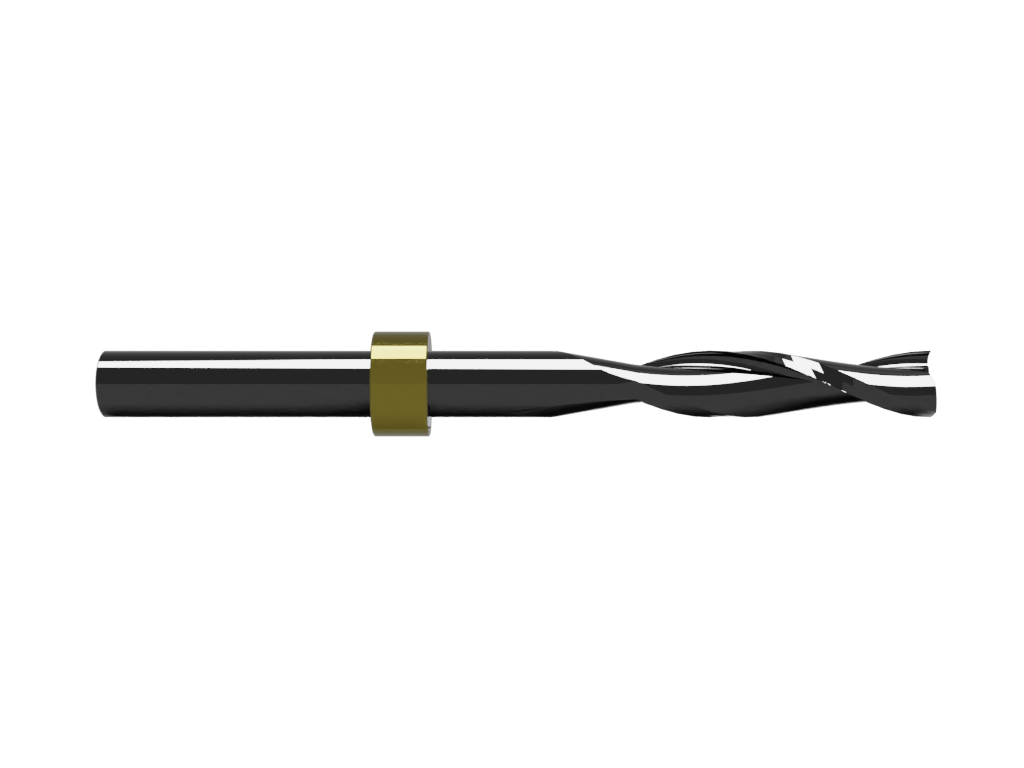

Double-flute, right-hand spiral (up cut) router bit with a 6mm cutting edge diameter and max milling depth of 27mm. Ideal for light foam < 52kg/m³. With stop ring (for use with the Zund ARC system and IECHO Tools Changer).
CS-Ru118-A
45,00 €
Double-flute, right-hand spiral (up cut) router bit with a 6mm cutting edge diameter and max milling depth of 27mm. Ideal for light foam < 52kg/m³. With stop ring (for use with the Zund ARC system and IECHO Tools Changer).
Additional information
Warning: Undefined array key “attribute_pa_blade-thickness” in /var/www/cuttersupplies.com/gammel/wp-content/themes/kiosko-child/functions.php on line 849
Warning: Undefined array key “attribute_pa_end-overcut” in /var/www/cuttersupplies.com/gammel/wp-content/themes/kiosko-child/functions.php on line 855
Warning: Undefined array key “attribute_pa_max-material-thickness” in /var/www/cuttersupplies.com/gammel/wp-content/themes/kiosko-child/functions.php on line 861
Warning: Undefined array key “attribute_pa_start-overcut” in /var/www/cuttersupplies.com/gammel/wp-content/themes/kiosko-child/functions.php on line 879
| Machine Model | IECHO, Zund |
|---|---|
| Process Category | Router bits |
| Process Type | Route – Through |
| Flutes | 2 Flutes |
| Cut Angle | Up Cut |
| Routing Diameter | 6 mm |
| Max Rpm | 48000 |
| Max Cut Length | 27 |
| Shank Diameter | 6 mm |
| Length Overall | 75 |
| Board – Rigid | EVA – Ethylene Vinyl Acetate, Expanded PVC, Gatorfoam®, Gatorplast®, HDU – High Density Urethane, Komatex®, Plaskolite®, Polyethylene 4 lbs., Precision Board®, Sign Foam®, Sintra®, Ultra Board® |
