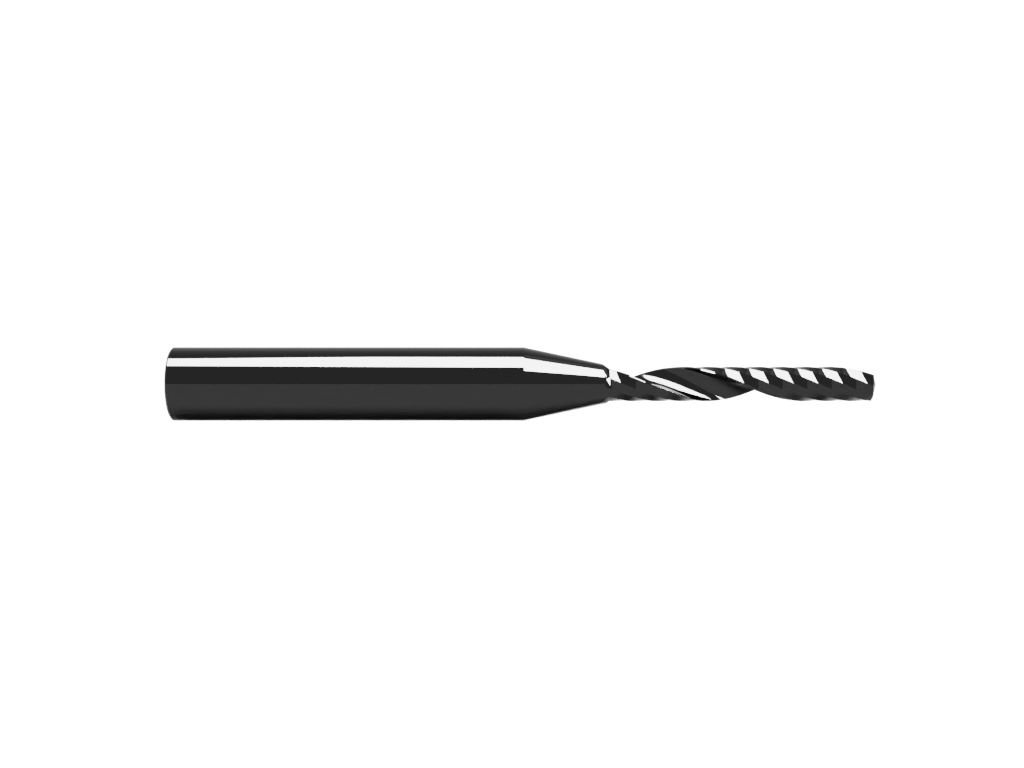

Extended version of the Ru203. A multi-purpose, single O-flute, right-hand spiral (up cut) router bit with a 3mm cutting edge diameter and max milling depth of 22mm. If cutting metals or ACM we highly recommend our Rainbow/DLC coated 500 series.
In stock
Extended version of the Ru203. A multi-purpose, single O-flute, right-hand spiral (up cut) router bit with a 3mm cutting edge diameter and max milling depth of 22mm. If cutting metals or ACM we highly recommend our Rainbow/DLC coated 500 series.
| Machine Model | Colex, Cosign, Gerber, IECHO, Kongsberg, Multicam, Summa, Zund |
|---|---|
| Process Category | Router bits |
| Process Type | Route – Through |
| Flutes | 1 Flute |
| Cut Angle | Up Cut |
| Routing Diameter | 3 mm |
| Max Rpm | 32000 |
| Max Material Thickness | 22 mm |
| Shank Diameter | 6 mm |
| Length Overall | 60 |
| Board – Rigid | Acrylic, EVA – Ethylene Vinyl Acetate, Expanded PVC, Gatorfoam®, Gatorplast®, HDU – High Density Urethane, Komatex®, Plaskolite®, Polycarbonate Board, Polyethylene 4 lbs., Sign Foam®, Sintra®, Ultra Board® |
| Wood | Birch Plywood, MDF, Poplar |
