Description

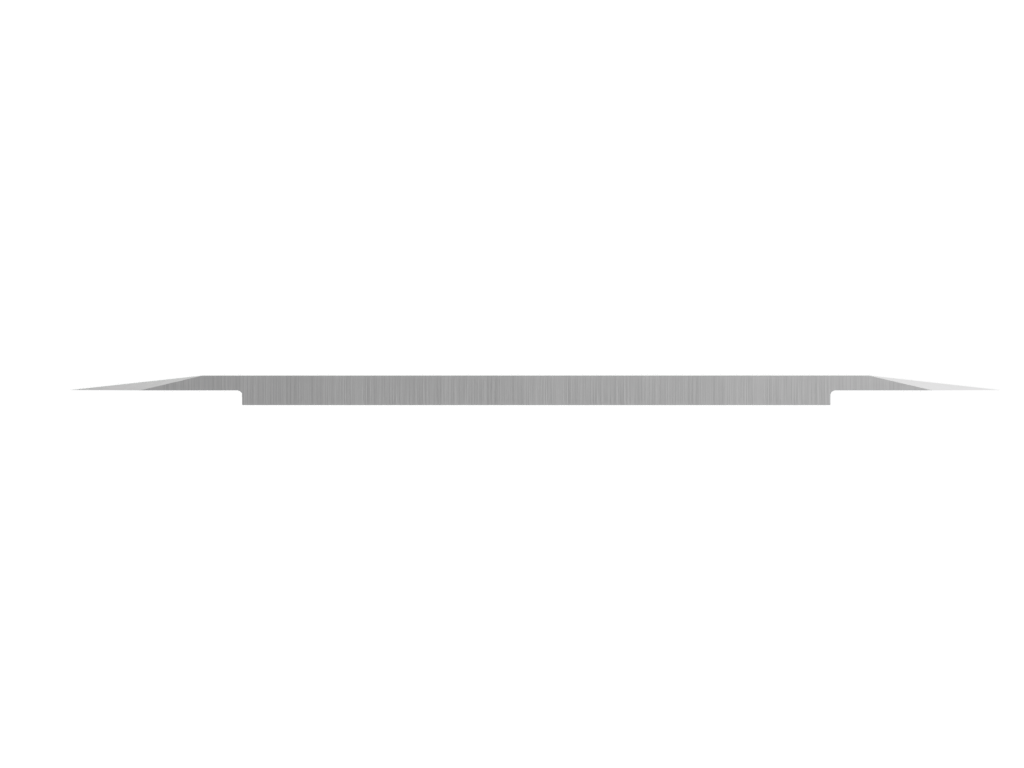

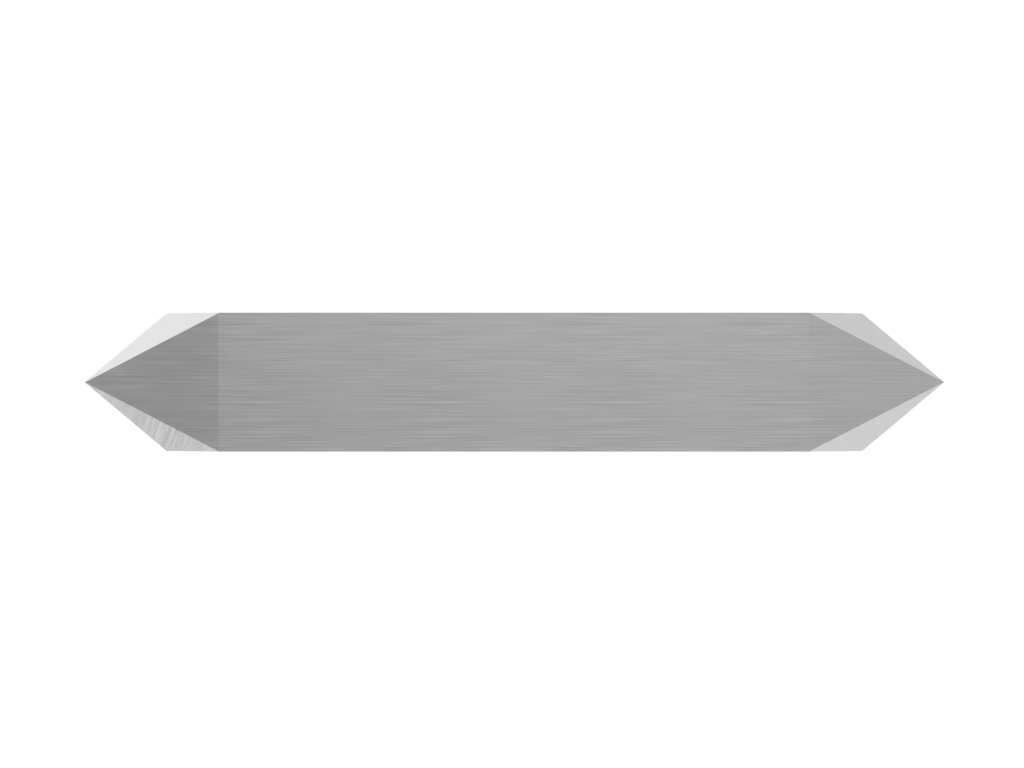

Double-edged, asymmetrical, blade for ridge free, inside cutting applications.
CS-K83A
45,00 €
Double-edged, asymmetrical, blade for ridge free, inside cutting applications.
In stock
Additional information
Warning: Undefined array key “attribute_pa_routing-diameter” in /var/www/cuttersupplies.com/gammel/wp-content/themes/kiosko-child/functions.php on line 867
Warning: Undefined array key “attribute_pa_shank-diameter” in /var/www/cuttersupplies.com/gammel/wp-content/themes/kiosko-child/functions.php on line 873
| Weight | 0,028125 kg |
|---|---|
| Dimensions | 2,22 × 1,63 × ,35 cm |
| Machine Model | Gerber, Kongsberg, Summa, Zund |
| Process Category | Knife blades |
| Process Type | Knife – Static/Drag |
| Cut Angle | 50° |
| Max Material Thickness | 4.8 mm |
| Blade Thickness | 1.5 mm |
| Knife Type | Flat Stock |
| Start Overcut | 0.84 mm |
| End Overcut | 0.84 mm |
| Board – Rigid | EVA – Ethylene Vinyl Acetate, Expanded PVC, Sign Foam®, Sintra® |
| Board – Soft | Corrugated Plastic, Fome-Cor®, Polycarbonate Sheet |
| Composite | Kapton, Prepreg Carbon Fiber, Prepreg Quartz, Prepreg Unidirectional Carbon Fiber, Toray® Prepreg Carbon Fiber |
| Flexible Material | Magnetic Foil, Magnum Magnetics, PTFE, PVC Banner, Rubber |
| Folding Carton | 2XL (85pt), Extra Heavy (50pt), Light (20pt), XL (32pt) |
| Textile | Polyester Coated, Polypropylene |
